Function introduction:

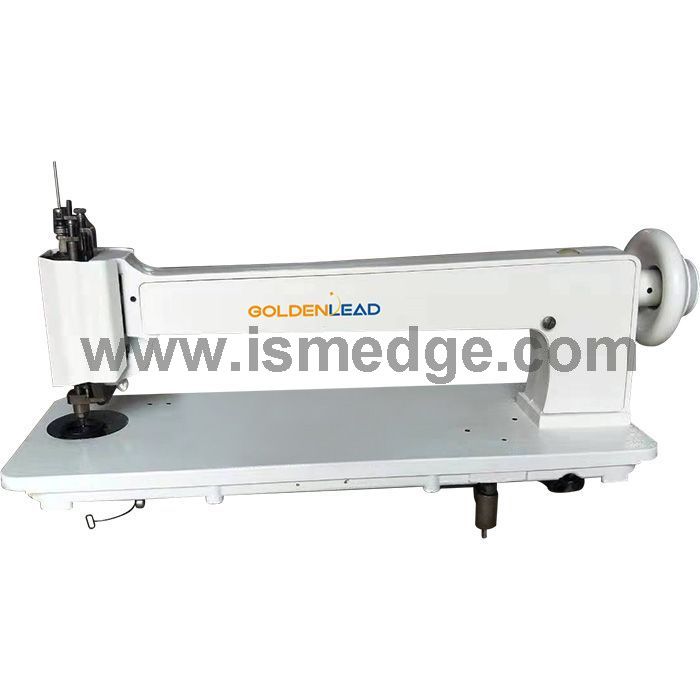

GL-10-3 type long arm upper chain stitch embroidery machine adopts universal feeding mode, which is different from traditional machine by longitudinal or transverse sewing feeding, with unique single thread chain stitch, can sew the desired pattern with simple handle control of the feeding direction, this special handle embroidery machine has the advantages of reasonable structure, flexible operation,perfect lubrication system. It is suitable for thin leather, towels, bedspreads, shirts, jackets, sportswear, flags, curtains, blankets, clothes,
The machine’s operation transverse space has extended to 600mm, it can do embroidery on the large cloths, such as, wall blanket,flower felt and very large embroidery. The machine is durable, and the quality is guaranteed.

Technical data:

Rated stitch speed：700 stitches/minute

Maximum stitch distance：4.5mm

Feeding mode：universal feeding

Stitch：single needle stitch

Length of the arm：600mm

Presser foot height：5/7mm

Needle：chain stitch: 137*1(14#- 19#) ; towel stitch: 137*1SM(14#- 19#)

Motor：Energy saving motor

Table：Special
