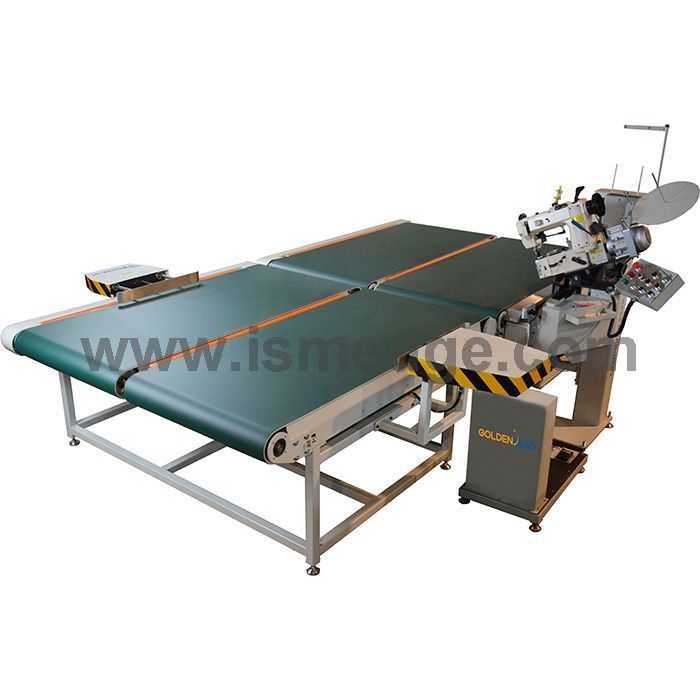

GL-5B Auto Flipping mattress edge machine with bilateral flipping device
DETAILS
This machine adopts PLC control,it could make the mattress move out, corner and flip automatically; its unique abilities such as sewing head auto raising or lowering at the corner, speed auto slowdown at the corner, sewing speed auto recovery after passing corner, adjustable sewing head tilting angle, adjust-able sewing head lift, adjustable sewing quality.
Sewing head: chain stitch
Lifting of table: PLC control
Working angle of the sewing head: 25°- 65°
Carriage speed: 10- 14 m/min
Mattress thickness: 30-400mm
Efficiency: 15- 20 pcs/ hour

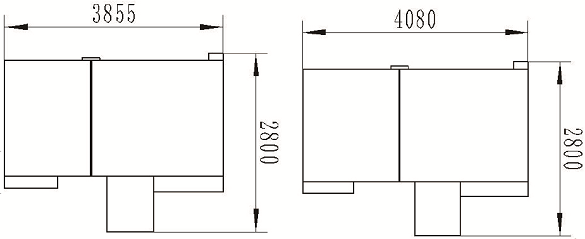

Size of the work table: 402X202cm
Motor power: 3.6 KW
