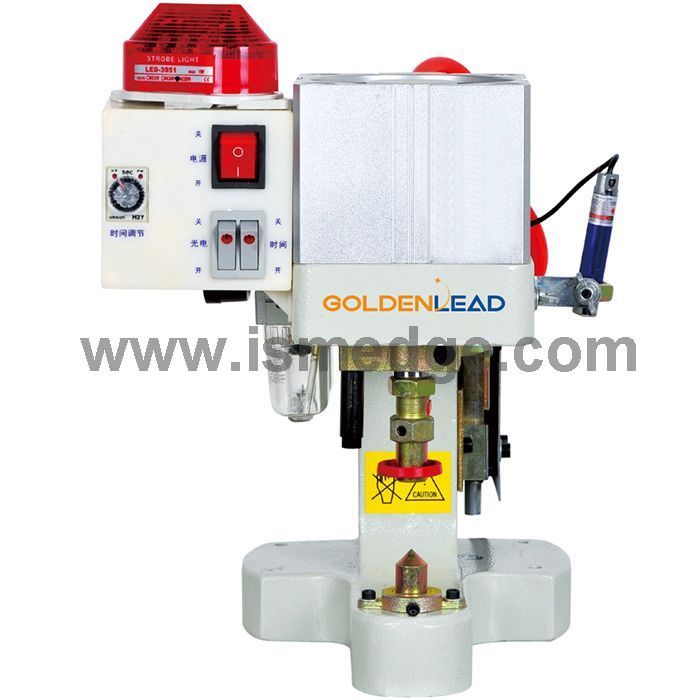

Specification

Working Voltage: AC 220V

Working Pressure: 0.15~0.8MPa

Attaching Button Pressure: 150~650kgs (adjustable)

Button Attaching Frequency: 1 second

Air Displacement: 0.1m³/minute

Adjust the down mold to get the best button attaching effect

Distance between up mold and down mold: 35mm

Protection Way: Intelligent armguard detection system

Positioning: with Laser Positioning Light

Performance

This machine can be installed one set of mold to work.

This machine has intelligent armguard detection system, which will protect worker’s fingers very well without any danger.

The button attaching frequency can be controlled and adjustable.

Usage Range

Fit for different styles and different sizes of eyelet, snap ring,jeans button, decoration button etc.
