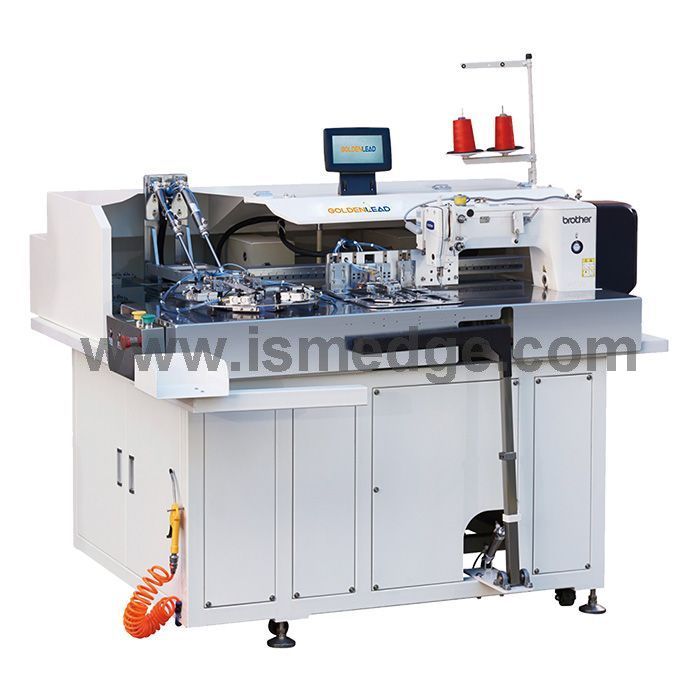

GL-311HN-AT Automatic iron-free jeans pocket setter (Brother head)

DETAILS

Technical data:

Sewing Area: 230*230mm

Sewing speed: 2800RPM

Stitch length: 0.1-20mm

Number of patterns storage: 999 kinds

Power supply: 750W, 220V/110V, 50/60HZ

Efficiency: 2100- 2500 pcs pockets/ 8 hours

Working pressure: 6 bar, Air consumption: 3 L/min

Gross weight:730KGS, Net weight:550 KGS

Packing size: 1850X1650X1600MM

Advantage:

1. The machine consists of 4 systems: automatic folding system, automatic feeding system, automat sewing system and automatic receiving system.The work process is fully automated. Simply place the fabric in the specified position,and then press the start key. The machine will automatically work and complete.Just need 2 hour training, un-skilled workers can be proffesional.

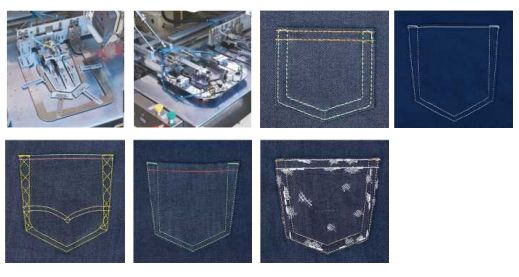

2. Automatic folding different shapes of pockets at different thickness without ironing;

3.Automatic stop function: When the thread breaks, or bottom thread fifinishes,the machine will automatically stop.

4. Electrical integrated control system, colorful touchable screen control panel,easy to operate.

5. The sewing patterns are designable, workers could make program of various fashionable patterns easily.
