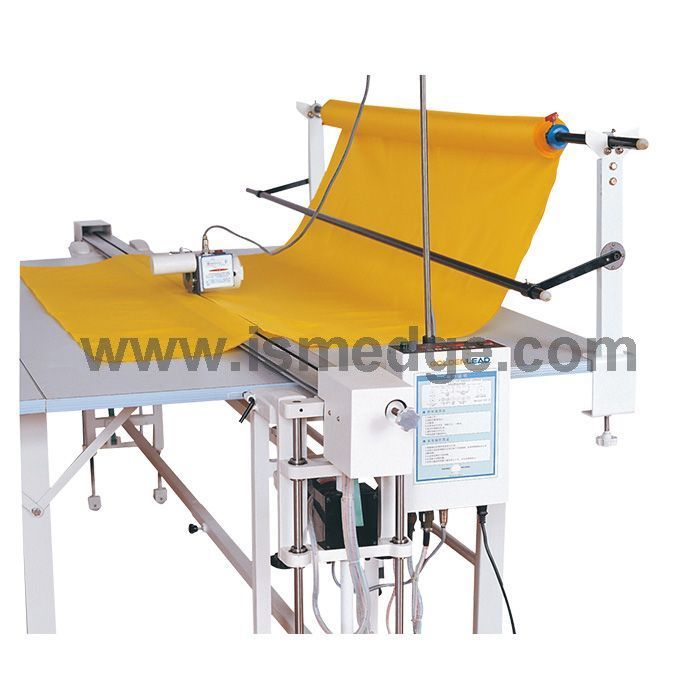

GL-B11-D3 Auto cloth end cutter
DETAILS
It is an ideal cutting machine to cut cotton, linen, silk, wind coat cloth, oilskin cloth, plastic cloth, plastic film, plastic leather, nylon, polyester, TIC, T/R, canvas, etc.
Features:
Single man operation. The rail goes up and down automatically, Rail pressure on cloth can be adjusted. The cutter returns automatically. Being installed with protection of cutting width. Emergency stop, Rail up & down brake Automatically reset, Intelligent counter: count accurately, reset automatically, etc. Being fitted with infrared sensor, The wire has elasticity-return device, without phenomena of swinging and breaking off. Swift grinding, swift cutting, low noise, high accuracy, Press cloth automatically, neatly and tidily Set cutting length arbitrarily, Grind the blade rapidly. Simple operation, time-saving, effort-saving, material-saving etc.
Support
| MODEL | POWER(W) | VOLTAGE(V) | FREQUENCY(Hz) | CUTTING WIDTH(m) | CUTTING CAPACITY(mm) | RAIL LENGTH(m) | ROTATE SPEEC(r.p.m) | NET WEIGHT(Kg) | PACKING SIZE(mm) | PACKING SIZE OF ACCESSORY(mm) |
| GL-B11-D3 | 200 | 220 | 50 | 1.2-3.2 | 9 | 1.5-3.5 | 12000 | 58 | 855x490x325 |
745x420x325 142x420x1600-3500(guide) |
