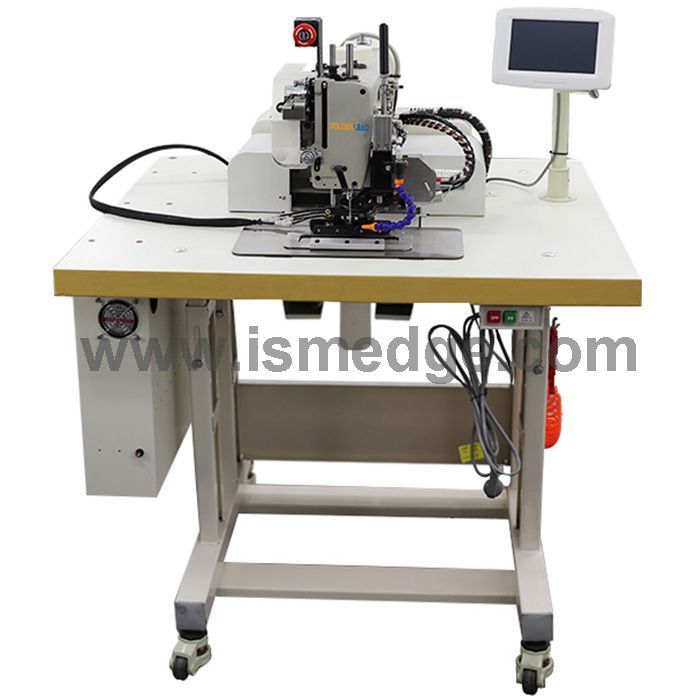

GL-8673-2010 Automatic heavy duty pattern sewing machine for sewing climbing ropes (shuttle hook)
DETAILS
Technical data:
Sewing speed: 800RPM
Sewing area 200*100mm
Sewing thickness: 22-23mm
Stitch length: 0.1-12mm
Presser foot lifting height: out presser plate 25mm, central presser foot: 25mm
Hook type: Super large shuttle hook
Trimming mode: eletrical heating knife
Max stitch number: 20000 stitches for each pattern
Usage:
width below 10mm of synthetic fiber lifting belt, flat lifting belt, large-tonnage
flexible lifting belt, safety belt, safety harness, industrial lifting belt, parachute,

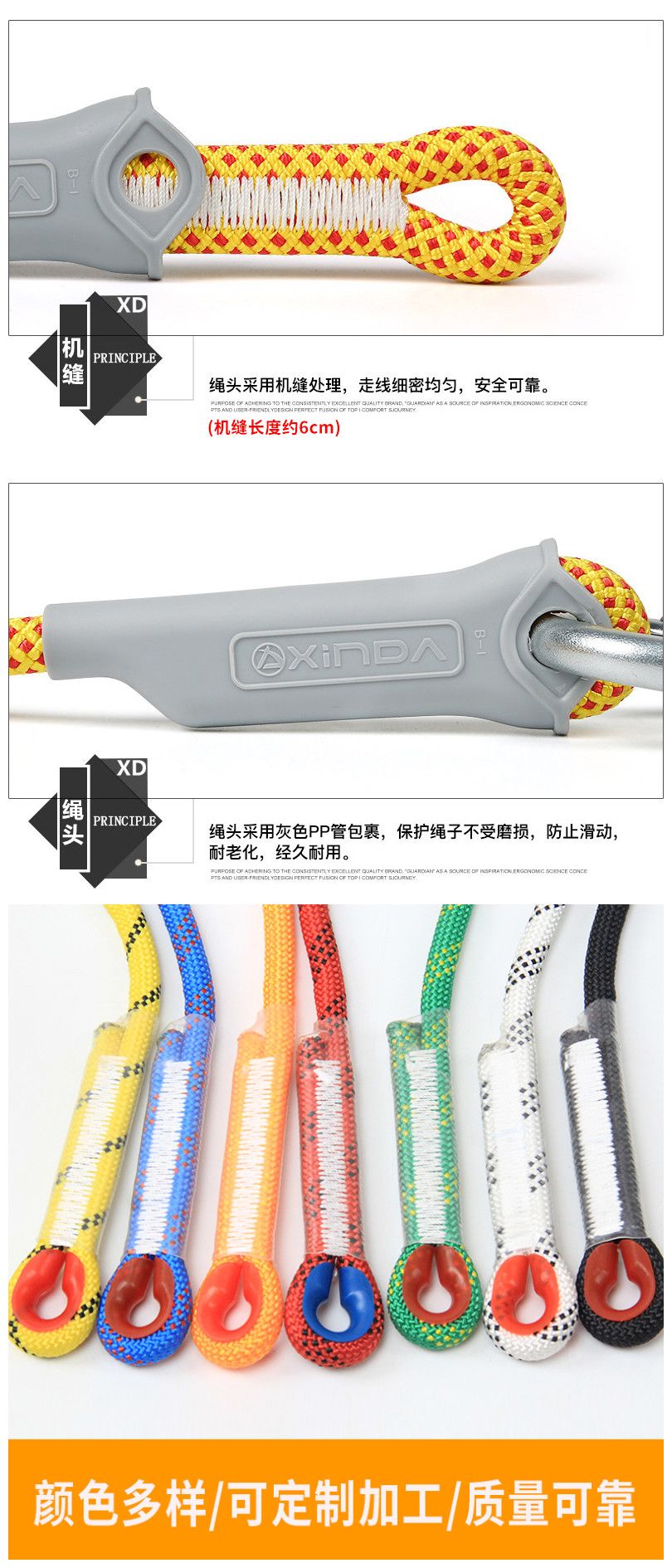

mountaineering rope, (static rope and dynamic rope).
