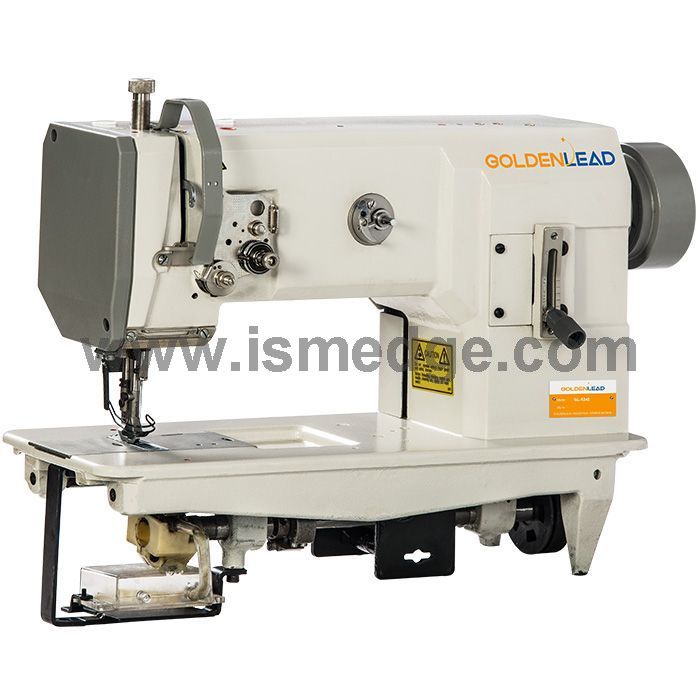

GL-1245 Compound feed lockstitch sewing machine for leather
DETAILS
Usage:
1. Standard sewing work on bags and leather crafts;
2. Binding of shoes, bags, imitation leather or textile tape;
3. Piping work on bags, suitcases and upholstery;
4. Decorative stitching in small leather goods
Feature:
1. The full synchronized binder using a synchronous motion, the close fifitting
binding folder moves backwards and forwards with the feed mechanism to
ensure constant accurate sewing of the binding tape;
2. A heavy duty triple feeding action by way of: bottom feed, needle bar feed and
walking foot top feed, which combine together to produce high quality
displacement-free seams;
3. Fewer bobbin changes due to the large hook (40% more bobbin capacity than
standard hook);
Model:GL-1245
Max. sewing speed:2800R.P.M
Max.stitch length:6mm
Needle bar stroke:38mm
Presser foot lift height:By hand lever 10mm,By knee lever 14mm
Sewing thickness:14mm
Needle system:Model No.:134-35 Standard:(1/100MM):110-140
Balance wheel:80MM in diameter
Working space:270X115MM
Base plate size:476X177MM
