GL-243
1. This model is the main product in our compound feed walking foot heavy duty industrial sewing machines (bottom feed, needle feed and walking foot feed);
2. Its powerful and steady feeding action enables you to sew multiple ply of heavy weight material with a true and even stitch;
3. The presser foot has an extra high lift and can go up to 23mm, allowing for a large range of extra heavy weight material or bulky items to be used;
4. A stitch length of up-to 15mm is possible (which in sewing machine terms, is big) and the machine has a reverse stitch lever as standard;

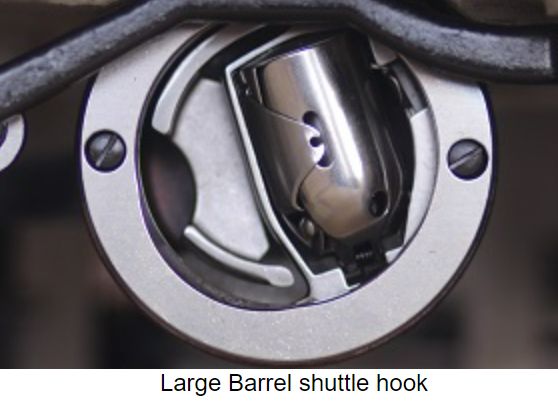

5. The special extra large shuttle hook and bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing products using extra thick thread up to metric size 7* (=V415, T-400, 1300dx3).
Applications:
For thick thread decorative top stitching on leather sofas and arm chairs, automotive upholstery, car seat covers etc.
For safety and durability of the seams on lifting slings, rigging slings, safety harnesses, fall protection equipment, climbing gear, parachutes, backpacks straps, saddle materials, sails, carpets, thick canvas & leather, bags, rugs, safety belts, straps, buffing wheels, bulky quilting & beds etc.
Specifications: |
|||
Max. Sewing Speed: |
800 rpm |
Hook Type: |
HAD-204 Barrel Shuttle Hook |
Presser Foot Lift: |
23mm |
Needle bar stroke: |
56 mm |
Needle System: |
794 (DYx3) needle,-#230 |
Max. Thread size |
#7, V415, 1300dX3, T-400 |
Stitch Length: |
0-11mm |
Bobbin size: |
Outside Dia. 24mm, Height 30.5mm |
Take up stroke: |
96 mm |
Tariff code (HS code): |
8452290000 |
Working space: |
420mm (length) x190mm( High) |
Recommended motor: |
Minimum 0.75 kW |
Packing size: |
790x450x570 MM |
Weight: |
70KGS |
