GL-8570

Advantages:

1. The presser foot has an extra high lift and can go up to 18mm, allowing for a large range of extra heavy weight bulk bag’s fabrics;

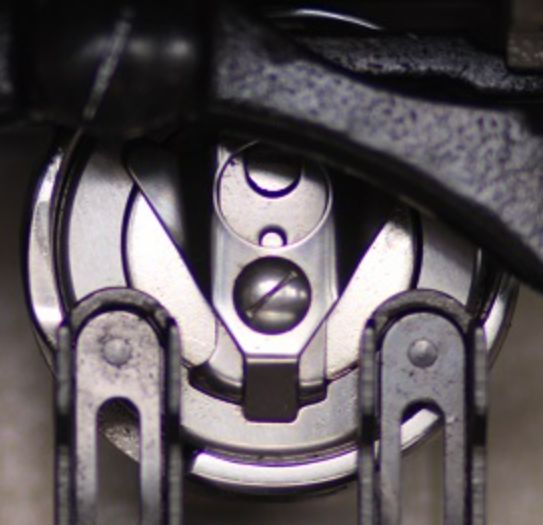

2. The horizontal axis rotary hook with extra large capacity bobbin is ideal for handling thick sewing thread #0-#7 (V207 standard);

3. The synchronized walking foot and drop feeding mechanism ensures positive feeding of material without slippage & providing smooth sewing of even the heaviest & most bulky materials;

4. Standard equipped with automatic foot lift and automatic back tacking (reverse stitch) for high productivity;

5. Can stitch in any direction (360°) due to the FREE SEWING DESGIN, you can move the material freely and quickly, especially when perform reinforcement stitch for sewing and attaching lifting loops (container belts).

Typical Application:

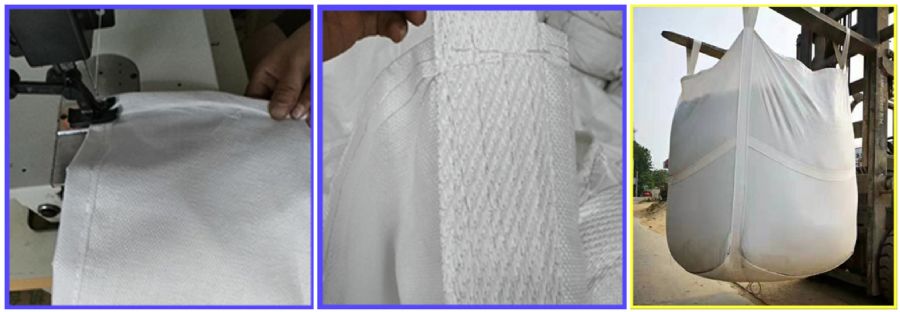

1. Making side seams on heavy weight fabrics with thick thread, and all other LOCKSTITCH seams on body of container bags;

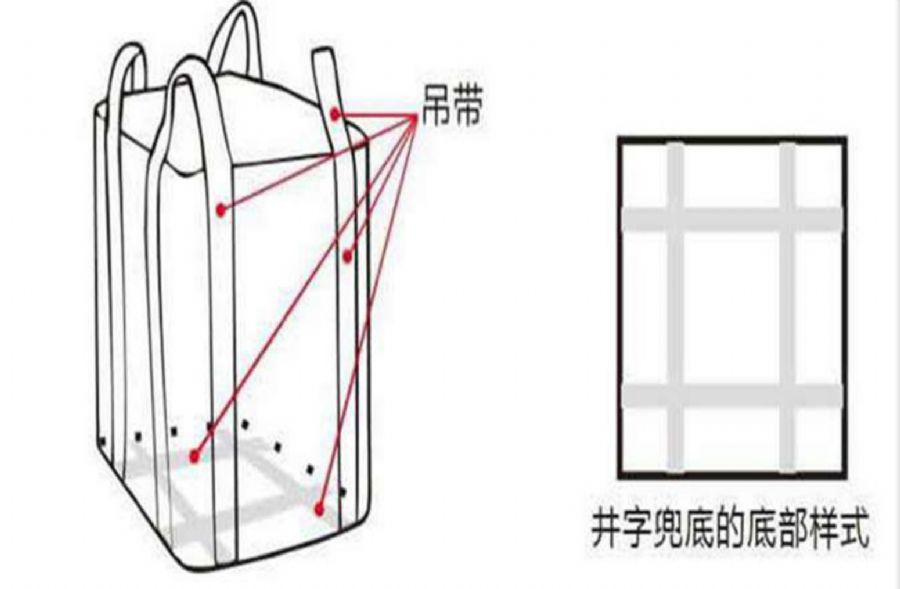

2. Assembling layers of PP webbings together for making lifting loops (container belts) of Big Bag, with various reinforced seams, such as X-Box;
3. Sewing and attaching side seam loops or cross corner loops (container belts) by reinforced stitching;
4. Inserting top covers and attaching filler cord and discharging tubes with cords from the too and/or from below for sealing the left needle punctures;
5. 3-D spacer fabric construction: stitch layers of spacer fabrics together with thickness up to 18mm;
6. Use as FIBC bag repair machine for patch and mend jute sacks, Polypropylene (PP) Big Bags, Container Bags, tents and awnings.
