GL-80700 Double- needle and four- thread overlock sewing machine with top and bottom feed for container bag
DETAILS
Technical data:
Stitch types: 401.502
Max. sewing speed: 1400 RPM
Needle System: 9853GA430/172 (standard)
Overedge Stitch Width: 10mm
Stitch range: 6 - 13mm
Motor: 750W, 200-240 Volt 1 or 3 Phase
Material thickness: 100-200 g/m2
Thread chain and tape cutter: Hot cutter
Feature:

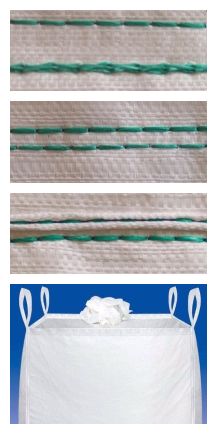

1. Two needle, four thread safety stitch (401.502) sewing machine with high needle throw;
2. With top and bottom feed for matched seams on heavy bag fabric;
3. Needle distance 5mm, overedge seam width 10 mm, seam width overall 15 mm;
4.Electro-pneumatically operated presser foot and upper feed dog lifter;
5. HOHSING i90 750W Ac Servo Motor with automatic needle UP/DOWN needle position;
Max. Sewing Capacity: 20 mm
Capacity under presser foot: 16mm
Needle distance: 5mm
Total Overedge Stitch Width: 15mm
Standard setting: 10mm
Air pressure: 0.6 MPa
Lubrication: Manual lubrication
Feed type: Top and bottom feed
