GL-81300 Heavy duty two- needle double chain stitch sewing machine with top and bottom feed for making single loop bag, double loop bag, Container bag and Baffle-Bag
DETAILS
Technical data:
Stitch types: 401, 401
Max. sewing speed: 1400 RPM
Needle System: 9848G300/120 (standard)
Stitch range: 6 - 12mm
Motor: 750W, 200-240 Volt 1 or 3 Phase
Material thickness: 100-200 g/m2
Thread chain and tape cutter: Hot cutter
Feed type: Top and bottom feed
Usage:

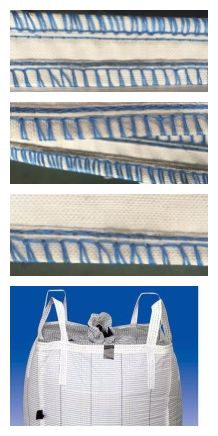

Universally applicable for all seams on container bags, inserting top covers and attaching fifilling
and discharging tubes on container bags, for example Single loop bags, Double loop bags,
Container bags, Bafflfle-Bag (Q-Bag) etc.
Also it is good over-edging sewing machine for heavy duty tents and tarpaulins.
Bag material: PP-woven-fabric, PP-laminated
woven-fabric, Felt
Bag types: 1 & 2 loop bag, Container bag,
Baffle-Bag (Q-Bag)
Capacity under presser foot: 18mm
Needle distance: 7.2mm
Air pressure: 0.6 MPa
Lubrication: Manual lubrication
