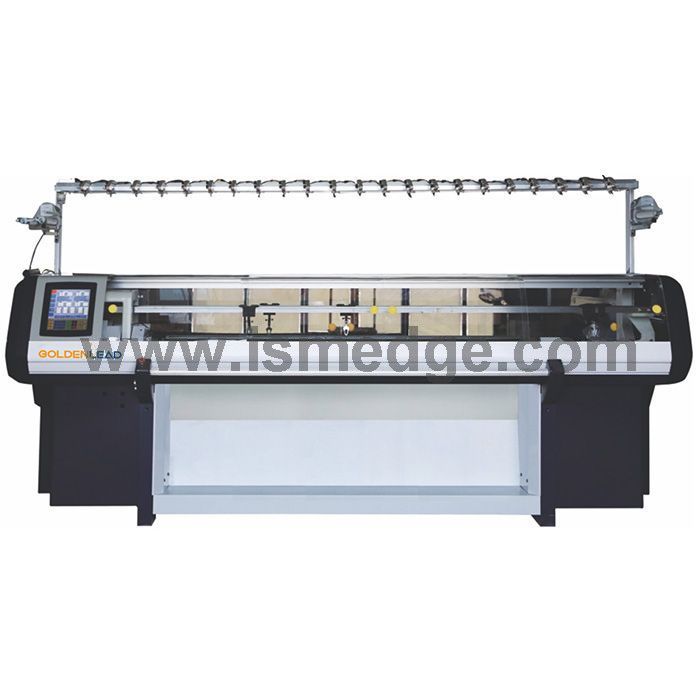

GL-45-12G/14G/ GL-52-12G/14G Knitting machine for sports shoe upper vamp
DETAILS
Feature:
This model is a high-speed and high-efficiency type with a maximum speed of
1.6m/s. The hard-ware is equipped with a motor connecting rod. Compared with
the magnet-seat type connecting rod, the large rod wear is eliminated, the single
port intermediate rotation can be realized, the rotation distance is shortened, the
swing control position is more accurate, and the ultra-small head design can be
improved efficiency by about 20%. The machine realizes multi-segments stitch
knitting in the same line with the equipment of stitch motor with dynamic stitch
function. With the tight tuck electron, it is available to realize the function of tuck
stitch, meeting the elastic of tight tuck density, so that improving the 3D effect of
shoes.
These series uses digital technology to achieve the patterns of weaving, pointel,
tuck, tight tuck, apparent shape, hidden shape, intarsia, floatless intarsia and other
irregular structure patterns.
