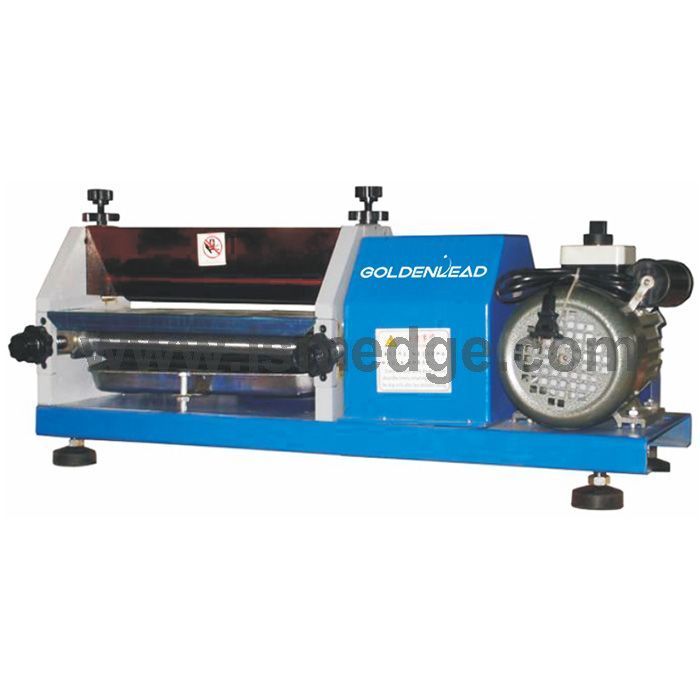

GL-8103/8104/8105 White glue machine
DETAILS

Features:
GL-8103/8104/8105  series white glue gluing machine is suitable for gluing various water-soluble glues.
The thickness of the glued object can be adjusted between 0.1-2mm, which is used for automatic glue brushing when various materials are bonded to each other and need to be coated with glue.
Can reach the required coating thickness and strength evenly and quickly .


MODEL

GL-8103


GL-8104


GL-8105
Power Supply
220V 50Hz

220V 50Hz

220V 50Hz
Glue Width
0-270mm

0-270mm

0-400mm

Machine Size
705*300*280mm

560*270*280mm

840*290*280mm

Weight
35Kg

30Kg
38Kg
Type

metal roller, seated type
soft roller, seated type
metal roller, seated
