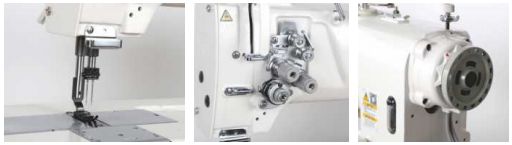

Direct drive servo motor, operating space extend to 56cm, in a state of low tension to prevent the beating at high speed, greatly improving production efficiency. nice, easy to operate. low noise, no radiation, environment-friendly. clothing industry can adapt to the thin, medium and thick material sewing.
|
Model |
GL-8420L-56-D |
|
Usage |
thick material |
|
Number of needles |
Double- needle |
|
Gauge set |
1/8〞 5/32〞 7/32〞 |
|
Needle |
DPX5 #11-#21 |
|
Oling way |
Auto lubrication |
|
Hook type |
Big hooks |
|
Arm length |
560mm |
|
Sewing speed |
3000 RPM |
|
Needle |
DPX5 #18-#22 |
|
Stitch length |
7mm |
|
Presser foot lifting height |
7mm/13mm |
|
Machine size |
1100X330X660 mm |
|
Gross/ net weight |
65/60kgs |
