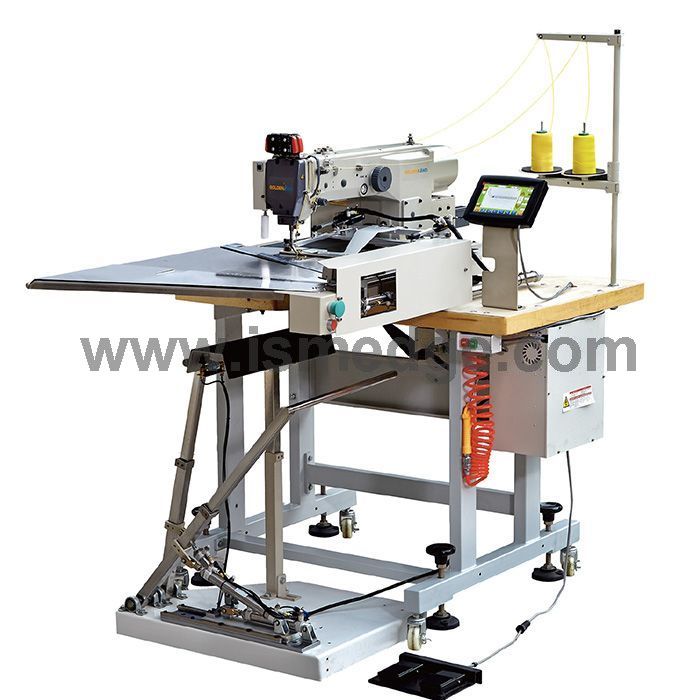

GL-2010G-FF Automatic fly facing edge sewing machine
DETAILS
Technical data:
Mitsubishi 2210 head，
Speed: 2800 rpm
Sewing range: 250 X130MM
Needle code length: 0.1-20MM Product count: 0-9999
Number of pattern storage: 999 Needle model: DPX17
Maximum capacity: 300 - 320 pieces/hour
Power source: AC 220V, 50/60Hz， 0.9 KW
Working pressure: 6 bar, Air consumption: 3 L/min
Gross weight: 480 KGS, Net weight: 310 KGS
Packing size: 1700 X 1280 X 1700MM
Advantage:
1.Use electrical integrated control system, color touch screen control panel, easy to operate.
2.The machine is composed of 3 major systems: automatic feeding system .automatic sewing system and automatic collecting system.
3.Speed and effificiency: The sewing speed is 2800 RPM; 300-320 pieces/hour
4.Automatic stop function: When the thread breaks, or bottom thread fifinishes, the machine will automatically stop.

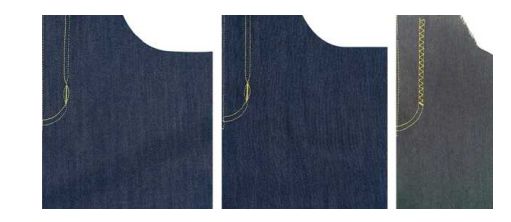

5.Functions of various fancy sewing, such as intense sewing, corner sewing, two needles and two colors sewing, and multi sewing can be easily be done.
6.Fixed mold, easy to replace.
7. Double worms and worm gears can automatically correct device position, more stable and better for soft fabric.
8.There are 4 models of this series: single-needle with rotary hook, single-needle with shuttle hook, double-needle with two-color rotary hooks and double-needle
with two-color shuttle hooks. It could meet the customer requirement.
